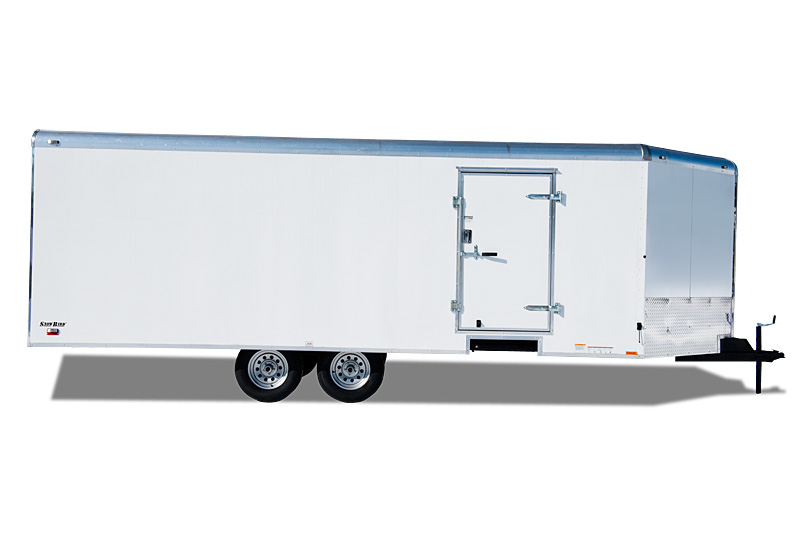

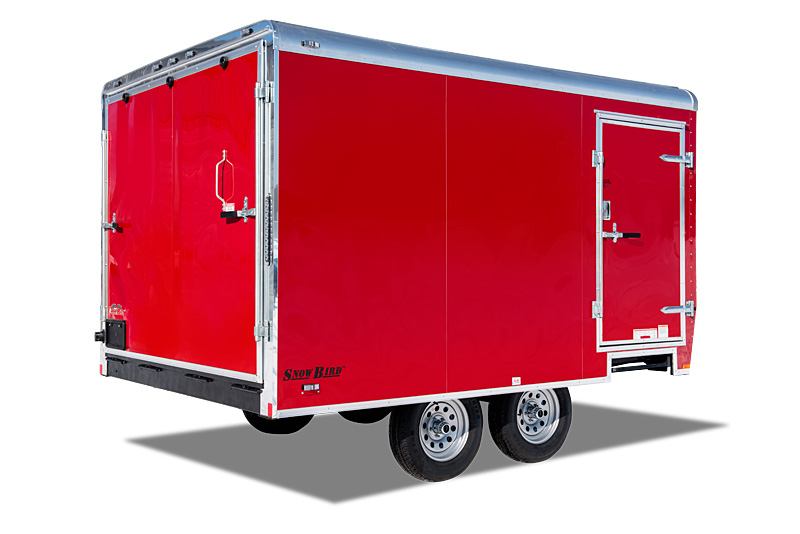

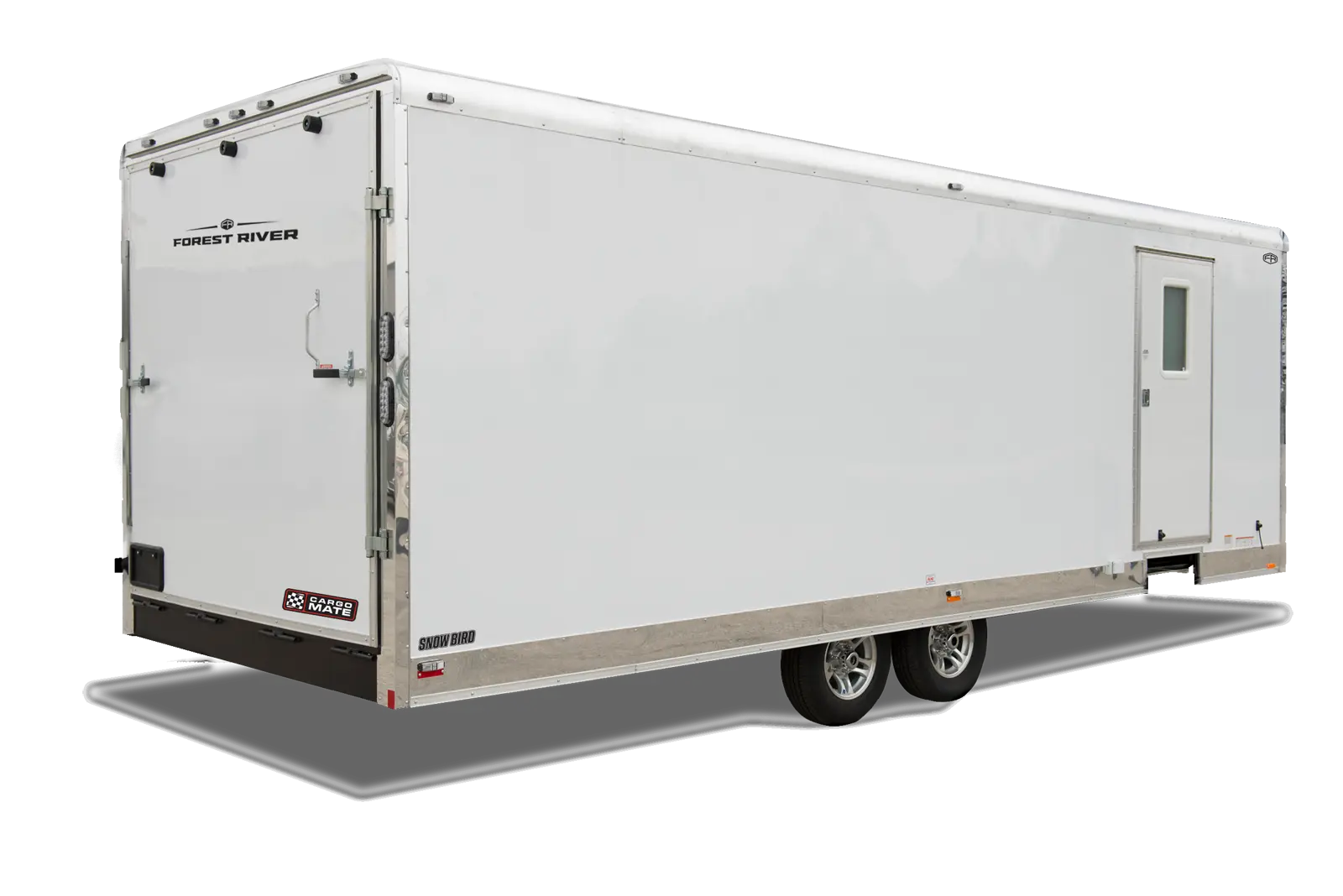

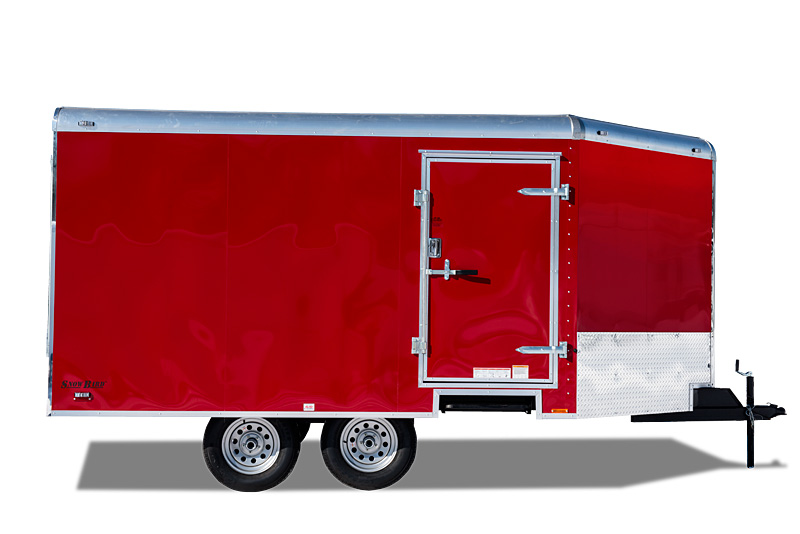

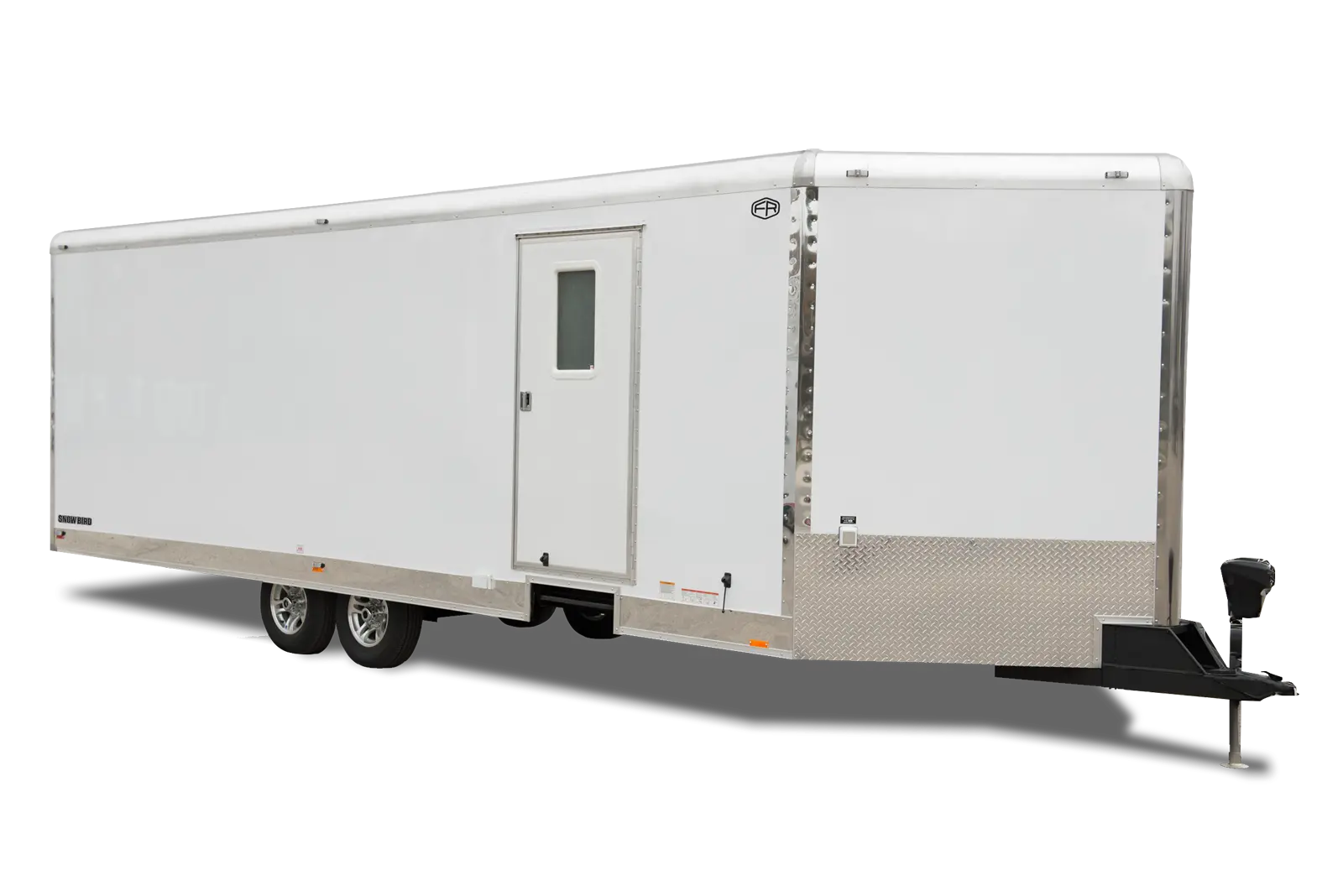

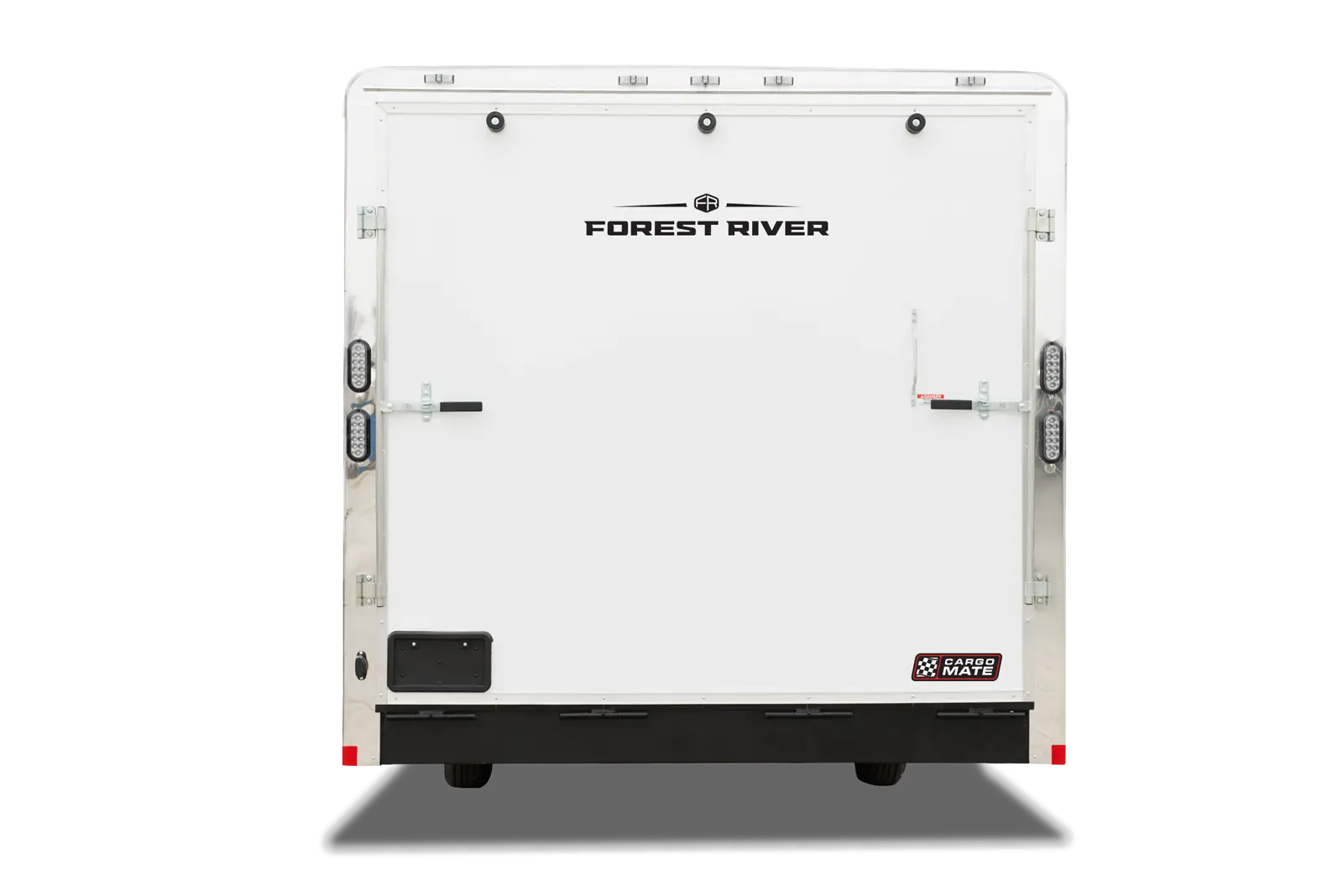

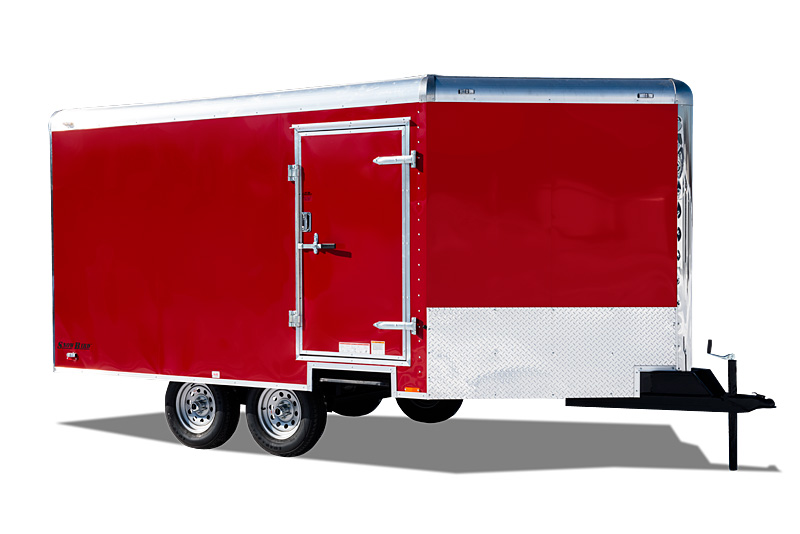

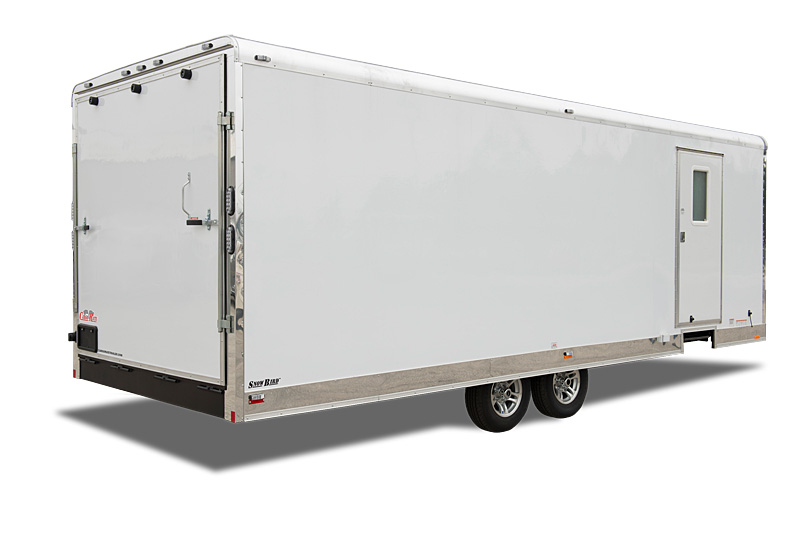

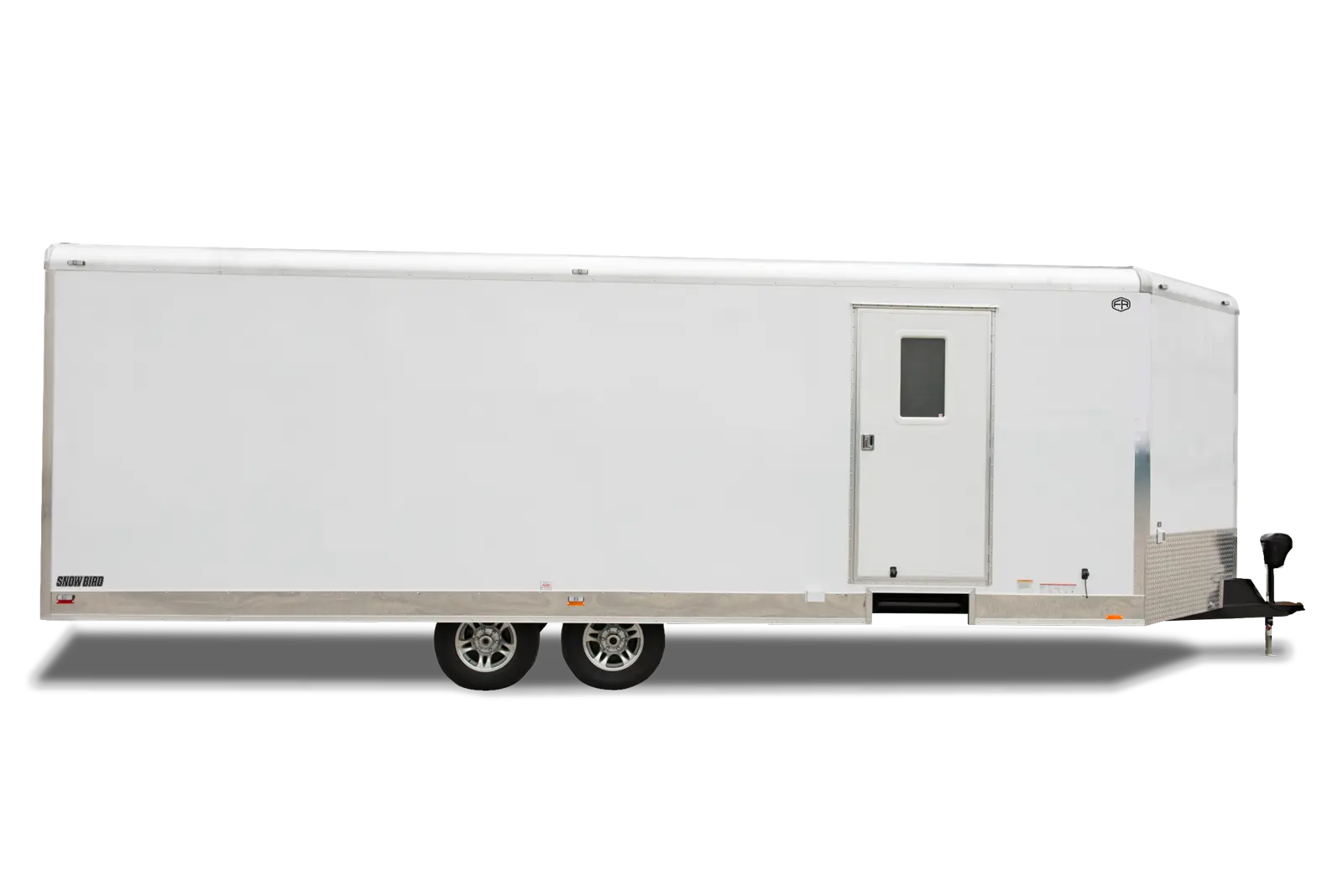

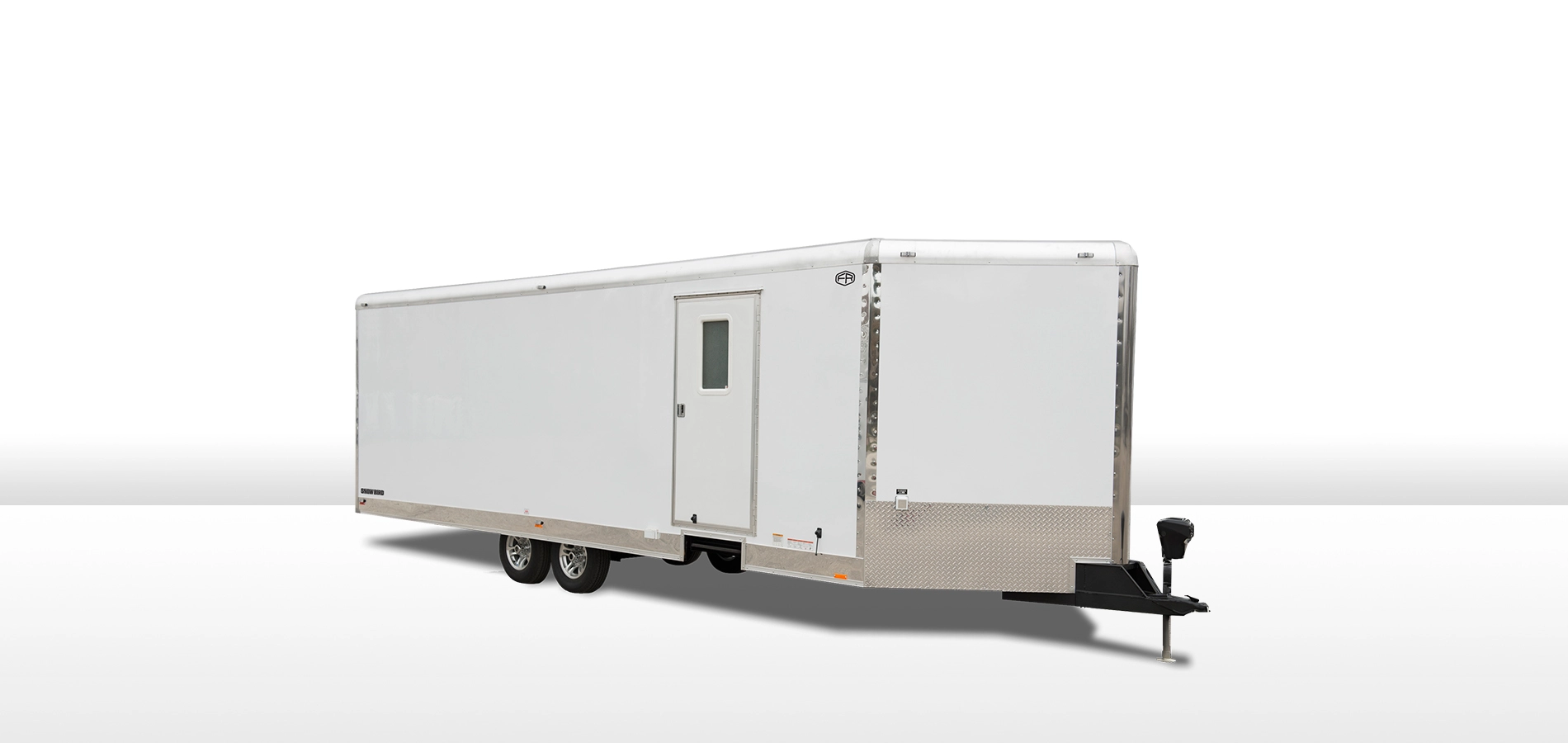

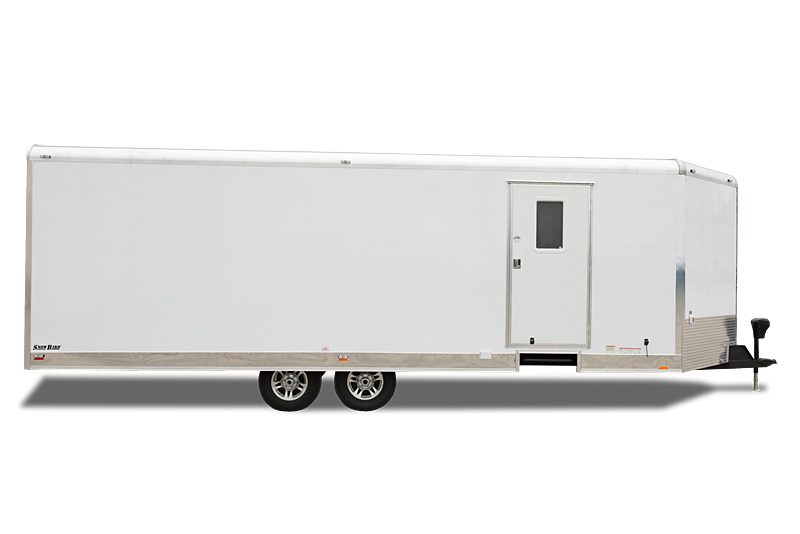

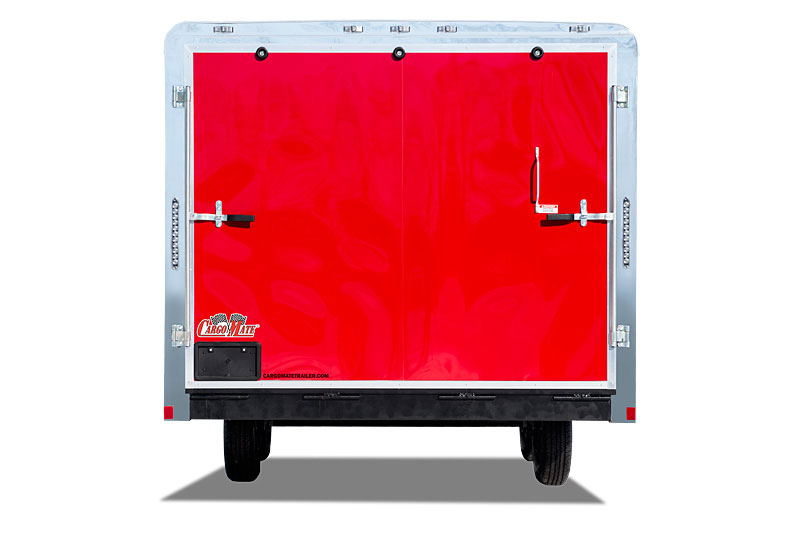

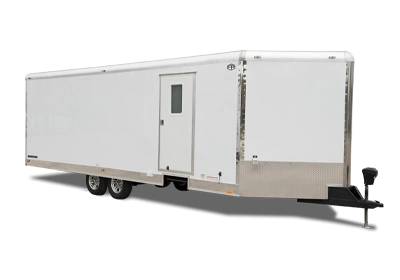

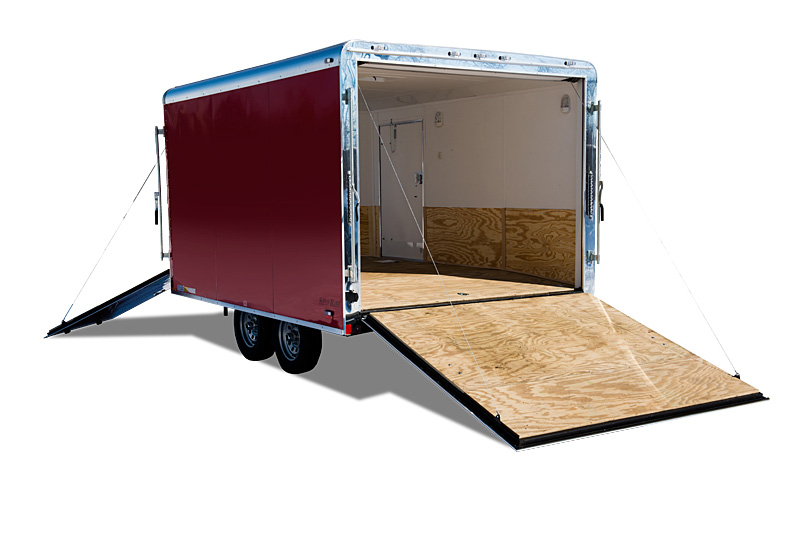

Snow Bird snowmobile trailers are available with a steel frame. The sizes range from a 7X22 tandem axle to 8.5X24 tandem axle model. Electric brakes are standard on all Snow Bird models. The standard payload capacities range from 1,220 to 4,640 lb. depending on trailer model. A ramp door in the front and rear are standard on Snow Bird models.

VIEW THE TOP REASONS TO BUY CARGO MATE

Care Camps, fighting cancer and making memories

Specifications

Print

Floorplan:SB722TA2SB728TA2
GVWR:7000 lb.7000 lb.
Payload Capacity:3925 lb.3433 lb.
Exterior Length:24' 0"30' 0"
Exterior Width:8' 6"8' 6"
Exterior Height:8' 1"8' 1"
Interior Length:21' 5"27' 5"
Interior Width:6' 6"6' 6"
Interior Height:6' 3"6' 3"

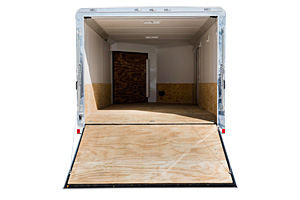

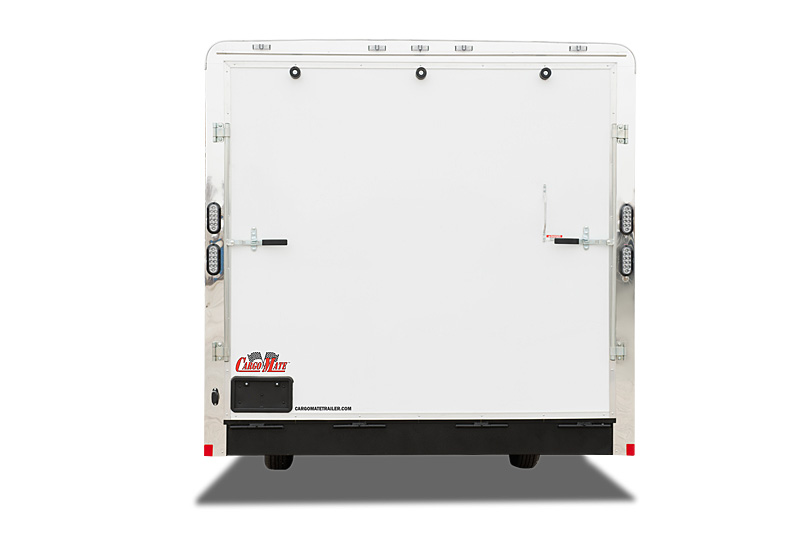

Rear Door Type:RampRamp
Rear Door Width:72"72"
Rear Door Height:65"65"
Front Door Type:RampRamp
Front Door Width:59"59"
Front Door Height:61"61"
Coupler Size:2-5/16""2-5/16""
Curb Weight:3075 lb.3567 lb.
Hitch Weight:310 lb.360 lb.
Hitch Height:19"19"
Platform Height:20"20"
Axle:2-3,5002-3,500
Brakes:ElectricElectric
Tires:ST205/75R15/CST205/75R15/C
Wheels:5 Bolt5 Bolt
Main Frame:6" I-Beam6" I-Beam
Floor:3/4" Plywood3/4" Plywood
Walls:3/8" Plywood3/8" Plywood

Features & Options

Print
All Lengths
  • 5' Front Wedge Nose

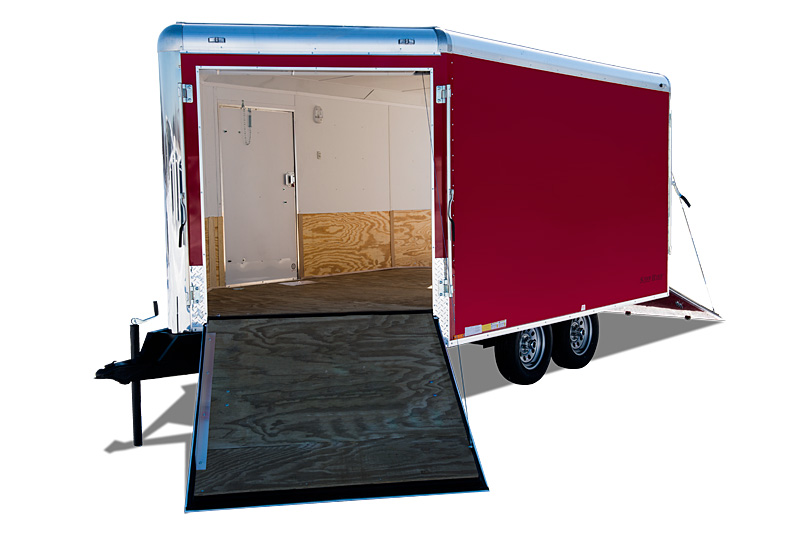

  • Front and Rear Ramp Doors with Spring Assist
  • No-Show Beavertail

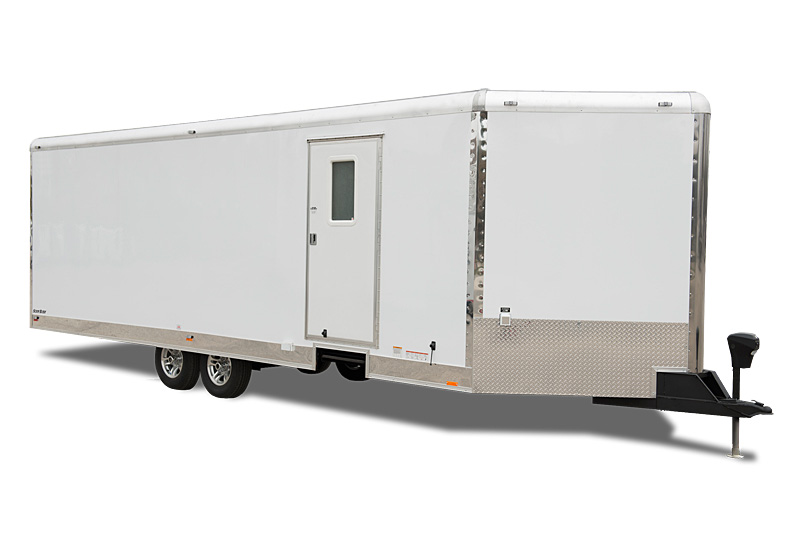

  • 36" Side Door with Flush Lock and Fold-Out RV-Style Step
  • Semi-Style Camlock Door Latches
  • Safety-Spring Chains on Side Door
  • Door Hold-Backs on All Doors
  • Torsion Wide-Track Axle
  • All-Wheel Electric Brakes with Breakaway
  • 12-Volt Breakaway Switch with Battery
  • E-Z Lube Hubs with Grease Caps
  • TPO Wedge Cap
  • Steel Sealed Sidewalls
  • Aluminum Wheels
  • Chrome Center Caps
  • Radial Tires
  • Aluminum Roof
  • .080 Mill-Finish Aluminum Top Wrap
  • 3/8" Plywood Kickplate on Interior Walls
  • 3/16" White Vinyl Wall and Ceiling Liner
  • Aluminum Tread Plate Stoneguard
  • Molded License Plate Holderand Light
  • .030 Alum. Exterior (Avail. in 14 Colors)
  • Screwless Exterior Metal
  • Anodized Aluminum Wrap on rear
  • Urethane Coating on Tongue and Rear Member
  • Z- Tech Undercoated Frame
  • Tongue Jack w/ Sand Pad
  • Welded Safety Chains
  • Full-Color Decals
  • Grease Zerks on Rear Ramp Hinges
  • Clear Lens LED Clearance Lights
Trailers 22 ft. or Less in Length:
  • (2) 12 Volt LED Dome Lights
  • (1) Switch
  • (1) Non-Powered Roof Vent
  • (6) 2,000 lb. Floor Mount D-Rings
Trailers 24 ft. or More in Length:
  • (4) 12Volt Dome Lights
  • (2) Switch
  • (2) Non-Powered Roof Vent
  • (9) 2,000lb. Floor Mount D-Rings
All Lengths
  • Clear Lens LED Strip Tail Lights
  • 102" Wide Body Design
  • 4' Front Wedge Nose
  • Front and Rear Ramp Doors with Spring Assist
  • No-Show Beavertail
  • 36" Side Door with Flush Lock and Fold-Out RV-Style Step
  • Semi-Style Camlock Door Latches
  • Safety-Spring Chains on Side Door
  • Door Hold-Backs on All Doors
  • Torsion Wide-Track Axle
  • All-Wheel Electric Brakes with Breakaway
  • 12-Volt Breakaway Switch with Battery
  • E-Z Lube Hubs with Grease Caps
  • Steel Sealed Sidewalls
  • Aluminum Wheels
  • Chrome Center Caps
  • Radial Tires
  • Aluminum Roof
  • .080 Mill-Finish Aluminum Top Wrapwith Cast 45° Corners and Ball Cap
  • 3/8" Plywood Kickplate on Interior Walls
  • 3/16" White Vinyl Wall and Ceiling Liner
  • Aluminum Tread Plate Stoneguard
  • Molded License Plate Holderand Light
  • .030 Alum. Exterior (Avail. in 14 Colors)
  • Screwless Exterior Metal
  • Anodized Aluminum Wrap on rear
  • Urethane Coating on Tongue and Rear Member
  • Z- Tech Undercoated Frame
  • Tongue Jack w/ Sand Pad
  • Welded Safety Chains
  • Full-Color Decals
  • Grease Zerks on Rear Ramp Hinges
  • Clear Lens LED Clearance Lights
  • Clear Lens LED Strip Tail Lights
Trailers 22 ft. or Less in Length:
  • (2) 12 Volt LED Dome Lights
  • (1) Switch
  • (1) Non-Powered Roof Vent
  • (6) 2,000 lb. Floor Mount D-Rings
Trailers 24 ft. or More in Length:
  • (4) 12Volt Dome Lights
  • (2) Switch
  • (2) Non-Powered Roof Vent
  • (9) 2,000lb. Floor Mount D-Rings
  • 110-Volt Package
  • All 110-Volt Packages Require a Finished Ceiling
  • (2) 4' Fluorescent Lights with (1) Wall Switch
  • (2) Interior Wall Recepts
  • Exterior Wall Recept with GFI
  • 15-Amp Motorbase Plug
  • Aluminum Package
  • Aluminum Wheels
  • Bright-Dip Aluminum Front Corners
  • Brght-Dip Aluminum Rear Structure
  • 6" of Bright-Dip Aluminum Along the Bottom of Both Sides
  • Generator Ready Package
  • 36" x 24" Vented Generator Door
  • Insulated Interior Generator Compartment
  • Carbon Monoxide Detector

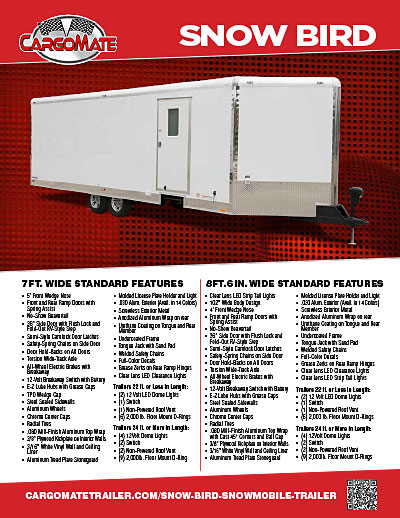

Literature
